Products
https://productimages.withfloats.com/tile/5c13b323aef3820001f05962.jpg

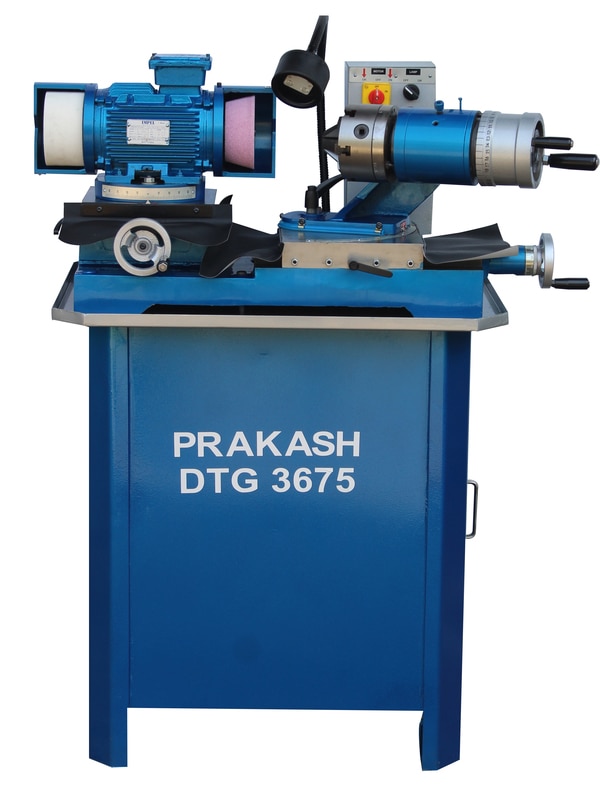

Drill Tap End Mill Cutter Grinder INR 135000 INR 135000
view details
5c076920aa23dc000140d422
-0%

Drill Tap End Mill Cutter Grinder

Manufacturer of a wide range of products which include drill point grinder, precision drill grinder and drill tap end mill cutter grinder. Product Details: Minimum Order Quantity : 1 Unit Model : DTG 3675 Item Weight (Kgs) : 225 Brand : Prakash Power Consumption (Watt) : 0.75 No Load Speed (rpm) : 2800 Disc Diameter : 5 inch We are successfully engaged in providing a wide gamut of Drill Tap End Mill Cutter Grinder.

INR 0 INR 135000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c0768b8939af900018a3a81.jpg

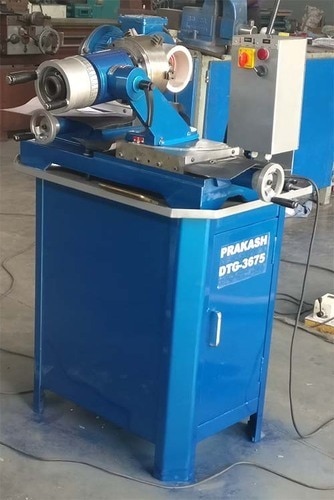

Drill Point Grinder INR 125000 INR 125000
view details
5c0768b81663ca0001d2c4bf
-0%

Drill Point Grinder

Manufacturer of a wide range of products which include drill point grinder, precision drill grinder and drill tap end mill cutter grinder. Product Details: Material Mild : Steel Net weight : 225 Kg Item Weight (Kgs) : 225 Brand : Prakash Power Consumption (Watt) : 0.75 No Load Speed (rpm) : 2800 Disc Diameter : 5 inch In order to cater the variegated demands of our precious clients, we are offering a wide range of Drill Point Grinder. Additional Information: Item Code: DTG-3675

INR 0 INR 125000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c0768586d46e40001b84e0e.jpg
Back Geared Radial Drilling Machine INR 153000 INR 153000
view details
5c076857aa23dc000140d414
-0%

Back Geared Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantity : 1 Piece Machine Measurement : 1350 x 850 x 1825 mm Spindle Hole Taper : MT-4 Spindle Speed : 88-2600 X 8 (RPM x Step) Diameter of RAM : 78 mm Spindle Feed Type : Fine Feed Max Min Spindle nose to base : 850 / 250 mm Max Min Spindle Center to column : 905 / 385 mm Maximum Drilling Radius : 990 mm Diamter of Column : 170 mm Lifting Motor : 0.5 HP / 1440 RPM Head Motor V belt : B-46 Lifting Motor V belt : B-23 / B-24 Drill Head Motor : 1.5 HP/1440 RPM Spindle Travel : 250 mm Model no : R40 Drilling in MS : 40 mm Drilling in CI : 45 mm Tapping in MS : 20 mm Work Table Dimension : 300 x 300 x 385 mm Automatic Grade : Automatic Hole Diameter : 0-25 mm Brand : Prakash

INR 0 INR 153000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c0767c96626a60001c63f65.jpg
Belt Drive Radial Arm Drill Machine INR 175000 INR 175000
view details
5c0767c6c0326d00019d7e8e
-0%

Belt Drive Radial Arm Drill Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantity : 1 Unit Spindle Travel : 250 mm Spindle Speed : 88-2600 x 8 (RPM x Steps) Lifting Motor V belt : B-23/B-24 Max and Min Distance Spindle Nose to Base : 850/250 mm Machine Measurement : 1350 x 850 x 1825 mm (L x B x H) Work Table Dimenshion : 300 x 300 x 385 mm Tapping in MS : 20 mm Drilling in MS : 40 mm Drilling in CI : 45 mm Spindle Hole Taper : MT-4 Max and Min Distance Spindle Center to Column : 905/385 mm Maximium Drilling Radius : 990 mm Diameter of Column : 170 mm Available Rough Boring in MS : 60, 75 mm Available Drill Head Motor : 1.5 HP/960 RPM, 1.5HP/1440 RPM Available Head Motor V belt : B-46, B-47 Automation Grade : Automatic Spindle Autofeed Ranges : 0.05 and 0.06 mm/rev Model : R40-BA Lifting Motor : 0.5 HP/1440 RPM Diameter of RAM : 78 mm Brand : Prakash With an objective to fulfill the demands of our clients, we are engaged in providing a wide array of Belt Drive Radial Arm Drill Machine. Features: 2.5 Module Autofeed Gears in R40BA Taper Cone Mechanism of Autofeed Taper Wedge Longer Gun Metal Nut for Lifting of Arm Exclusive Features of R40 Series: Oil Bath lifting Assembly Steel worm supported through ball bearings at both sides Screw supported through taper roller bearings Wide supports of a column, column bracket & arm Long bottom for greater rigidity to reduce vibration Heavy duty column with the Heavily ribbed base plate Greater Support through closed V - Guideways and I wider drilling head Better design of arm for higher rigidity and wide support Standard Accessories: Motor Pulley Extra Accessories: Electrical Motors "V" Belts Coolant Pump with Coolant Tank Drill Chuck & Arbor Work Table Tapping Control Panel Board Keyless Drill Chuck & Arbor Tapping Attachment (Mechanical) Extra Long column Electrical Panel Board in R40BA

INR 0 INR 175000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c076738bb06900001945d14.jpg
Standard Radial Drilling Machine INR 80000 INR 80000
view details
5c076738700e360001910899
-0%

Standard Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantity : 1 Unit Drill Head Motor : 1.5 HP/1440 RPM Spindle Speed RPM Steps : 105-2650 X 8 Diameter of RAM quill : 72 mm Spindle Auto Feed Ranges mm rev : Fine Feed Max min dist spindle nose to base : 860/100 mm Max min Dist Spindle Center To Column : 1640/330 mm Max Drilling Radius : 705 mm Drilling in MS : 25 mm Drilling in CI : 30 mm Tapping in MS : 12 mm Spindle in Taper : MT-3 Spindle in Travel : 175 mm Model : R25 Brand : Prakash Features: Taper Wedge All side useful boxtable Standard Accessories: Motor Pulley Extra Accessories: Electrical Motors "V" Belts Coolant Pump with Coolant Tank Drill Chuck & Arbor Work Table Tapping Control Panel Board Keyless Drill Chuck & Arbor Tapping Attachment (Mechanical) Extra Long column

INR 0 INR 80000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c0766c12eb0a100014632dc.jpg
Fine Feed Radial Drilling Machine INR 195000 INR 195000
view details
5c0766c1cd16540001e755d0
-0%

Fine Feed Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantit : 1 Unit Lifting Motor : 0.5HP/ 1440 RPM Tapping in M.S : 20 mm Model No : R40G Drilling in MS : 40 mm Drilling in CI : 45 mm Spindle Hole Taper : MT-4 Spindle Travel : 250 mm Spindle Speeds : 70-1225 x 9 (RPM x Step) Diameter of RAM : 78 mm Max Min Distance Spindle Nose to Base : 850/250 mm Max Min Spindle center to Column : 950 / 385 mm Maximum Drilling Radius : 990 mm Machine Measurement : 1350 x 850 x 1825 mm Diameter of Column : 170 mm Drill Head Motor : 1.5 HP/960 RPM Lifting Motor V belt : B-23/B-24 Work Table Dimension : 300 x 300 x 385 mm Automatic Grade : Automatic Brand : Prakash We are offering Fine Feed Radial Drilling Machine to our client Standard Accessories: Electrical panel board & switches Electrical motors Coolant pump with spot assembly in model R40AA V belts Extra Accessories: Drill Chuck & Arbor Keyless Drill Chuck & Arbor Work Table Tapping Attachment (Mechanical) Drill Vice Oil Bath Gear Box: The all-new design of gearbox in a gear box model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Gearbox and hardened gear give a very long life to the machine. Rotation and easy sliding of gears in bearing give very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine. Autofeed Gear Box: Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box is supported through a good quality bearing and not the bushes. Engaging of Autofeed through Taper Cone Mechanism as in the lathe machines enables maximum loading capacity leaving behind another machine.

INR 0 INR 195000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c076636190ec0000169d0a0.jpg
Geared Drilling Machine INR 275000 INR 275000
view details
5c0766356d6ea200013594f5
-0%

Geared Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantity : 1 Unit Table Size : 800 X 240 mm Drilling Head Motor : 1.5 HP / 960 RPM Max. Drilling Capacity : 40mm Lifting Motor : 1 HP/1440 RPM Lifting Motor V belt : B-23 / B-24 Model no : R40AA Drilling in MS : 40 mm Spindle Travel : 250 mm Spindle Speed : 70-1225 X 9 (RPM x Step) Tapping in MS : 25 mm Spindle Hole taper : MT-4 Drilling in CI : 45 mm Rough Boring in MS : 75 mm Spindle Autofeed Ranges : 0.05 & 0.09 (mm/rev.) Max Min Distance Spindle Nose to Base : 950 / 250 mm Max Min Distance Spindle Center to Column : 930 / 400 mm Maximum Drilling Radius : 1020 mm Machine Measurement : 1510 X 850 X 2100 mm Diameter of Column : 180 mm Work Table Dimension : 300 X 300 X 385 mm Coolant Tank Inbuilt In Base : 440 X 430 X 140 mm 26 Litres Brand : Prakash Automatic Grade : Automatic Oil bath Gear Box The all new design of gear box in model PMW R40AA,R40G and P40AA is having 9 speed with all 9 gears made up of hardened NiCr steel up to HRC 50 55. Oil bath gear box and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings gives very high reliability. Gear are internally six splined and shaft are externally splined All the gears in gearbox are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine. Autofeed Gear Box Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging Of Autofeed through Taper Cone Mechanism As in the lathe machines enables maximum loading capacity leaving behind other machines Features: 9 Spindle speeds with single speed motor Hardened Gears Hardened & Ground Spindle, RAM, Pinion Single Piece Arm Taper Wedge Longer Gun Metal Nut for Lifting of Arm Extra Accessories: Drill Chuck & Arbor Keyless Dill Chuck & Arbor Work Table Extra Long Column Tapping Attachment (Mechanical) Drill Vice Standard Accessories: Electrical Panel Board & Switches Electrical Motors Coolant pump with Spout Assembly in Model R40AA

INR 0 INR 275000

Availability:True

Pay mode:COD only

view details
https://productimages.withfloats.com/tile/5c076492aedaac0001fdb917.jpg
Double Column Radial Drilling Machine INR 395000 INR 395000
view details
5c076492b161a70001c794c1
-0%

Double Column Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India. Product Details: Minimum Order Quantity : 1 Unit Max Min Dist Spindle nose to base : 1155/400 mm Diameter Of Column : 225 mm Drill head motor : 960/1440 RPM Coolant Tank : 50 Litres Drilling in MS : 42(1(5/8)") Lifting motor L B H : 1 H.P (0.75KW) 960 RPM Tapping in MS : 25 mm Spindle travel : 225 mm Spindle Speed : 12 Steps 60, 90, 115, 165, 200, 290, 340, 480, 575, 825, 1005, 15101 (RPM x Steps) Spindle Autofeed Ranges mm rev : 6 Steps 0.1, 0.15, 0.20, 0.27, 0.33, 0.52 Vertical travel of Arm : 755 mm Power : 2 HP Max Min Dist Spindle Center of Column : 1025/275 mm Horizontal Travel of Arm : 750 mm Max Drilling Radius : 1137 mm Drilling in CI : 50 mm Rough boring in MS : 60 mm Work Table Dimnension : 550 x 450 x 400 mm Machine Measurement : 1600 (L) x 850 (B) x 2190 (H) mm Drilling Diameter (in mm) : 42 Model : DC 410 Phase : Three Phase Spindle Taper : MT-4 Brand : Prakash We are offering Double Column Radial Drilling Machine to our clients. Standard Accessories: 2 HP & 1 HP Electric Motors Electrical Panel Board Coolant Pump & Spout Assembly Extra Accessories: Drill Chuck & Arbor Keyless Drill Chuck & Arbor Work Table Tapping Attachment (Mechanical) Drill Vice Column Assembly: Double column type structure with dia 225 mm and inside RIBS for more rigidity and smooth movement. Arm Assembly: Arm and column are rigidly built with reinforcement ribs to reduce distortion, to give high capacity and long lasting accuracy. Gears: All gears in the gearbox are made up of NiCr steel with the hardness of 50-55 HRC with the thickness of 15mm. Shaft Gear: All shaft made up of NiCr alloy with hardness 55 HRC. All four splines and six splines of shafts are ground on Spline Grinding Machine. Lifting Nut: 4" Long lifting nut made up of bronze metal Spindle RAM(Quill) and Pinion is made up of NiCr steel with the final hardness of 55 HRC. Autofeed system: 6 auto feed having near geometric Progression for all processes to be done like tinging, reaming. boring etc. Overload Safety clutch system for tool protection and machine protection spindle auto-stop with travel adjustment. RAM(Quill) Cylinder Liner: Head stock is provided with high grade cast iron cylinder liner like in automobile engines for easy sliding movement of RAM(Quill) and very long hh Also it ensures interchangeability when replacing after wear out. Base: A more wider base for the better working area Rigid Box type construction3

INR 0 INR 395000

Availability:True

Pay mode:COD only

view details
