Description
Product details

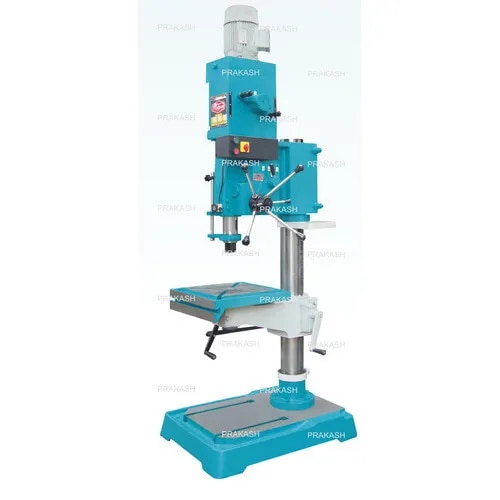

Our product range includes a wide range of column pillar drilling machine, fine feed pillar drill machine, automatic fine feed pillar drill machine, pillar drill machine, geared pillar drill machine and auto feed column drilling machine. Product Details: Minimum Order Quantity : 1 Unit Drill Head Motor : 1.5 HP Drilling Capacity in C.I : 38 mm Machine Measurement : 690 x 470 x 1778 mm Spindle Hole Taper : MT-4 Spindle Travel : 160 mm Spindle Speed : 80-2600 x 8 (rpm x step) Diameter of RAM : 72 mm Feed Type : Fine Feed Maximum Distance Spindle Nose to Table : 670 mm Spindle Center to Column : 260 mm Table Size : 355 x 355 mm Column Diameter : 108 mm Distance from Spindle Nose to Base : 1120 mm V belt : B-54 Tapping in MS : 20 mm Drilling Capacity in M.S : 35 mm Brand : Prakash Model : P35 We are successfully meeting the requirements of our clients by offering the best quality range of Geared Pillar Drill Machine. Standard Accessories: Motor Pulley Extra Accessories: Electrical Motor, Keyless Doll Chuck & Arbor V Belts Tapping Control Panel Board Drill Chuck & Arbor Tapping Attachment (Mechanical) Coolant Pump with Coolant Tank Product Details: Minimum Order Quantity : 1 Unit Drilling in M.S. : 40 Spindle Autofeed Ranges : 0.05 & 0.09 (mm/rev.) Machine Measurement : 850 x 650 x 1850 mm Diameter of Column : 130 mm Drill Head Motor : 1.5 HP/960 RPM Maximum Distance from Spindle Nose to Base : 920 mm Column Diameter : 130 mm Spindle Center to column : 345 mm Table Size : 450 x 455 mm Model No : P40AA Drilling in CI : 45 Tapping in MS : 25 Rough Boring in MS : 75 Spindle Hole Taper : MT-4 Spindle Travel : 250 mm Spindle Speeds : 70-1225 x 9 (RPM x Step) Diameter of RAM : 78 mm Brand : Prakash Automatic Grade : Automatic Max Spindle Speed (rpm) : 1560 We are offering Auto feed Column Drilling Machine to our clients. Oil Bath Gear Box: The all-new design of gearbox in a given model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Oil bath gearbox and hardened gear give very long life to the machine. Rotation and easy sliding of gears in very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine. Autofeed Gear Box : Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box are supported through the good quality bearing and not the bushes. Engaging of Autofeed through taper cone mechanism as in the lathe machines enables maximum loading capacity leaving behind other machine.
