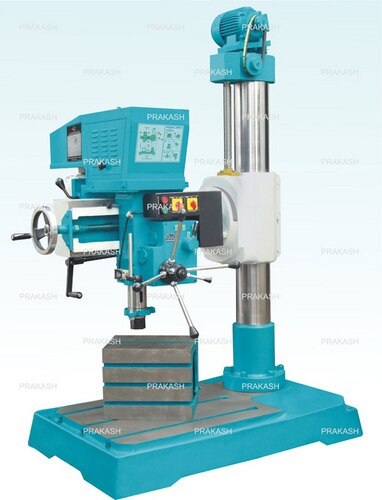

Auto Feed Radial Drilling Machine
Description
We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.
Product Details:
Minimum Order Quantity : 1 Unit
Spindle Travel : 250 mm
Spindle Speed (RPM x Steps) : 88-2600 x 8
Lifting Motor : 0.5 HP/1440 RPM
Lifting Motor V belt : B-23/B-24
Diameter of RAM : 78 mm
Max / Min Distance Spindle Nose to Base : 850/250 mm
Machine Measurement (L x B x H) : 1350 x 850 x 1825 mm
Tapping in MS : 20 mm
Drilling in MS : 40 mm
Drilling in CI : 45 mm
Spindle Hole Taper : MT-4
Max Min Distance Spindle Center to Column : 905/385 mm
Maximium Drilling Radius : 990 mm
Diameter of Column : 170 mm
Available Rough Boring in MS : 60, 75 mm
Available Drill Head Motor : 1.5 HP/960 RPM, 1.5HP/1440 RPM
Available Head Motor V belt : B-46, B-47
Automation Grade : Automatic
Work Table Dimension : 300 x 300 x 385 mm
Spindle Autofeed Ranges : 0.05 and 0.06 mm/rev
Model : R40-BA
Brand : Prakash
We are offering Auto Feed Radial Drilling Machine to our clients.
Features:
2.5 Module Autofeed Gears in R40BA
Taper Cone Mechanism of Autofeed Taper Wedge
Longer Gun Metal Nut for Lifting of Arm
Exclusive Features of R40 Series:
Oil Bath lifting Assembly
Steel worm supported through ball bearings at both sides
Screw supported through taper roller bearings
Wide supports of a column, column bracket & arm
Long bottom for greater rigidity to reduce vibration
Heavy duty column with the Heavily ribbed base plate
Greater Support through closed V - Guideways and I wider drilling head
Better design of arm for higher rigidity and wide support
Standard Accessories:
Motor Pulley
Extra Accessories:
Electrical Motors
"V" Belts
Coolant Pump with Coolant Tank
Drill Chuck & Arbor
Work Table
Tapping Control Panel Board
Keyless Drill Chuck & Arbor
Tapping Attachment (Mechanical)
Extra Long column
Electrical Panel Board in R40BA
