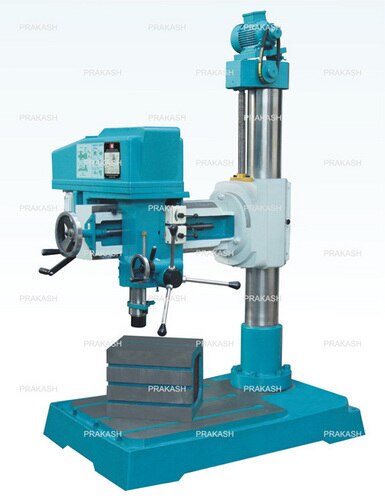

Back Geared Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.

Product Details:

Minimum Order Quantity : 1 Piece

Machine Measurement : 1350 x 850 x 1825 mm

Spindle Hole Taper : MT-4

Spindle Speed : 88-2600 X 8 (RPM x Step)

Diameter of RAM : 78 mm

Spindle Feed Type : Fine Feed

Max Min Spindle nose to base : 850 / 250 mm

Max Min Spindle Center to column : 905 / 385 mm

Maximum Drilling Radius : 990 mm

Diamter of Column : 170 mm

Lifting Motor : 0.5 HP / 1440 RPM

Head Motor V belt : B-46

Lifting Motor V belt : B-23 / B-24

Drill Head Motor : 1.5 HP/1440 RPM

Spindle Travel : 250 mm

Model no : R40

Drilling in MS : 40 mm

Drilling in CI : 45 mm

Tapping in MS : 20 mm

Work Table Dimension : 300 x 300 x 385 mm

Automatic Grade : Automatic

Hole Diameter : 0-25 mm

Brand : Prakash
