Description

Product details

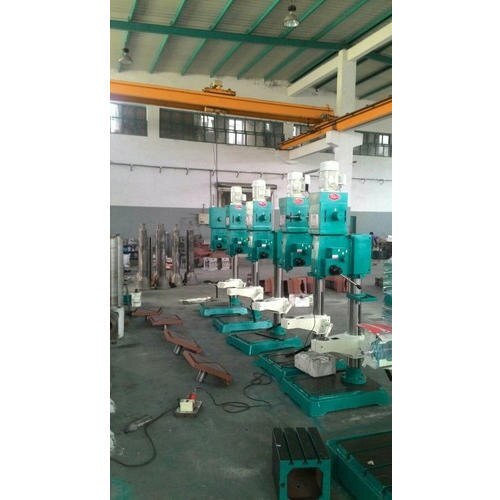

Our product range includes a wide range of column pillar drilling machine, fine feed pillar drill machine, automatic fine feed pillar drill machine, pillar drill machine, geared pillar drill machine and auto feed column drilling machine. Minimum Order Quantity : 1 Unit Drilling in MS : 40 mm Drilling in CI : 45 mm Tapping in MS : 25 mm Rough Boring in MS : 75 mm Spindle Travel : 250 mm Spindle Speeds : 70-1225 x 9 (RPM X steps) Diameter of RAM : 78 mm Autofeed Ranges : 0.05 & 0.09 (mm/rev.) Max Dist Spindle nose to Table : 575 mm Spindle center to column : 345 mm Machine Mesurement : 1510x850x2100 (LxBxH) Diameter of Column : 130 mm Dist from Spindle Nose to Base : 920 mm Work Table : 450 x 455 mm Drill Head Motor : 1.5 HP/960 RPM Automation Grade : Automatic Drilling Diameter (in mm) : 6 mm Spindle Hole Taper : MT -4 Drill Depth(mm) : 10-20 No Load Speed : 0-500 rpm Brand : Prakash Oil bath Gear Box: The all-new design of gearbox in model PMW- R40AA, R40G and P40AA is having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50- 55. Oil bath gearbox and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings give very high reliability. Gear is internally six splined and shaft are externally splined All the gears in the gearbox are machined on imported WMW Germany make gear shaper. All the splines in the gearbox are machined on imported faster Germany make spline milling machine. Autofeed Gear Box: Autofeed gearbox used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging of Autofeed through Taper Cone Mechanism as in the lathe machines enables maximum loading capacity leaving behind other machines.
