Double Column Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.

Product Details:

Minimum Order Quantity : 1 Unit

Max Min Dist Spindle nose to base : 1155/400 mm

Diameter Of Column : 225 mm

Drill head motor : 960/1440 RPM

Coolant Tank : 50 Litres

Drilling in MS : 42(1(5/8)")

Lifting motor L B H : 1 H.P (0.75KW) 960 RPM

Tapping in MS : 25 mm

Spindle travel : 225 mm

Spindle Speed : 12 Steps 60, 90, 115, 165, 200, 290, 340, 480, 575, 825, 1005, 15101 (RPM x Steps)

Spindle Autofeed Ranges mm rev : 6 Steps 0.1, 0.15, 0.20, 0.27, 0.33, 0.52

Vertical travel of Arm : 755 mm

Power : 2 HP

Max Min Dist Spindle Center of Column : 1025/275 mm

Horizontal Travel of Arm : 750 mm

Max Drilling Radius : 1137 mm

Drilling in CI : 50 mm

Rough boring in MS : 60 mm

Work Table Dimnension : 550 x 450 x 400 mm

Machine Measurement : 1600 (L) x 850 (B) x 2190 (H) mm

Drilling Diameter (in mm) : 42

Model : DC 410

Phase : Three Phase

Spindle Taper : MT-4

Brand : Prakash

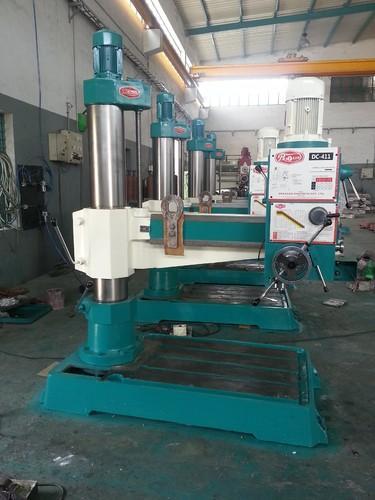

We are offering Double Column Radial Drilling Machine to our clients.

Standard Accessories:

2 HP & 1 HP Electric Motors

Electrical Panel Board

Coolant Pump & Spout Assembly

Extra Accessories:

Drill Chuck & Arbor

Keyless Drill Chuck & Arbor

Work Table

Tapping Attachment (Mechanical)

Drill Vice

Column Assembly:

Double column type structure with dia 225 mm and inside RIBS for more rigidity and smooth movement.

Arm Assembly:

Arm and column are rigidly built with reinforcement ribs to reduce distortion, to give high capacity and long lasting accuracy.

Gears:

All gears in the gearbox are made up of NiCr steel with the hardness of 50-55 HRC with the thickness of 15mm.

Shaft Gear:

All shaft made up of NiCr alloy with hardness 55 HRC. All four splines and six splines of shafts are ground on Spline Grinding Machine.

Lifting Nut:

4" Long lifting nut made up of bronze metal Spindle RAM(Quill) and Pinion is made up of NiCr steel with the final hardness of 55 HRC.

Autofeed system:

6 auto feed having near geometric Progression for all processes to be done like tinging, reaming. boring etc. Overload Safety clutch system for tool protection and machine protection spindle auto-stop with travel adjustment.

RAM(Quill) Cylinder Liner:

Head stock is provided with high grade cast iron cylinder liner like in automobile engines for easy sliding movement of RAM(Quill) and very long hh Also it ensures interchangeability when replacing after wear out.

Base:

A more wider base for the better working area

Rigid Box type construction3
