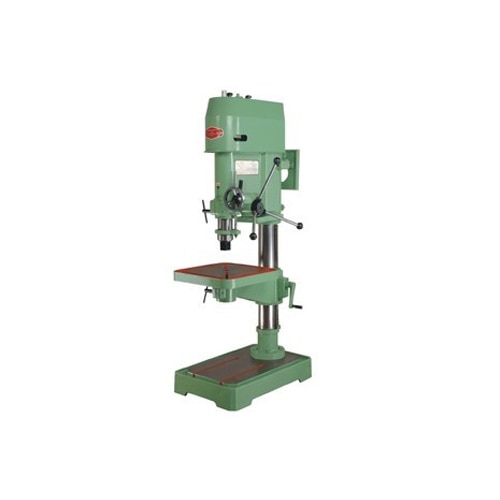

Fine Feed Pillar Drill Machine

Fine Feed Pillar Drill Machine

INR 75000
Share with
Share this on :

Description

Product details

Our product range includes a wide range of column pillar drilling machine, fine feed pillar drill machine, automatic fine feed pillar drill machine, pillar drill machine, geared pillar drill machine and auto feed column drilling machine. Product Details: Minimum Order Quantity : 1 Unit Power Voltage : 220 V Maximum Distance Spindle Nose to Table : 610 mm Spindle Center to Column : 321 mm Table Size : 425 x 425 mm Machine Measurement : 700 x 450 x 1830 mm Column Diameter : 110 mm Distance from Spindle Nose to Base : 970 mm Drill Head Motor : 1.5 HP V belt : B-60 Drilling Capacity in MS : 38 mm Drilling Capacity in CI : 42 mm Tapping in MS : 20 mm Spindle Hole Taper : MT-4 Spindle Travel : 250 mm Spindle Speed : 80-2600 x 8 (rpm x step) Diameter of RAM : 78 mm Feed Type : Fine Feed Brand : Prakash Model : P38 We are offering Fine Feed Pillar Drill Machine to our clients. Standard Accessories: Motor Pull Extra Accessories: Electrical Motors Keyless Doll Chuck & Arbor V Belts Tapping Control Panel Board Drill Chuck & Arbor Tapping Attachment (Mechanical) Coolant Pump with Coolant Tank
