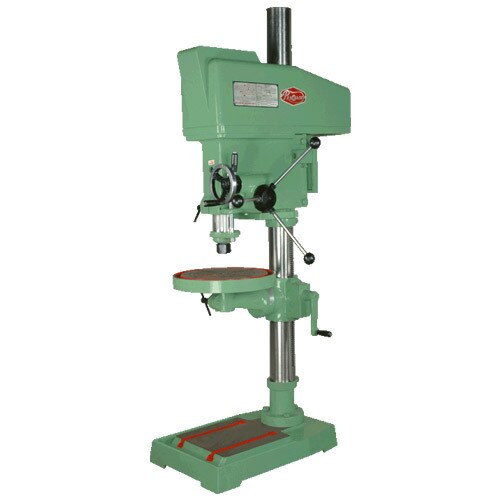

Fine Feed Pillar Drilling Machine

Fine Feed Pillar Drilling Machine

INR 40000
Share with
Share this on :

Description

Product details

Our product range includes a wide range of column pillar drilling machine, fine feed pillar drill machine, automatic fine feed pillar drill machine, pillar drill machine, geared pillar drill machine and auto feed column drilling machine. Product Details: Minimum Order Quantity : 1 Unit Drill Head Motor : 1.5 HP Drilling Capacity in C.I : 38 mm Machine Measurement : 690 x 470 x 1778 mm Spindle Hole Taper : MT-4 Spindle Travel : 160 mm Spindle Speed : 80-2600 x 8 (rpm x step) Diameter of RAM : 72 mm Feed Type : Fine Feed Maximum Distance Spindle Nose to Table : 670 mm Spindle Center to Column : 260 mm Table Size : 355 x 355 mm Column Diameter : 108 mm Distance from Spindle Nose to Base : 1120 mm V belt : B-54 Tapping in MS : 20 mm Drilling Capacity in M.S : 35 mm Brand : Prakash Model : P35 We are successfully meeting the requirements of our clients by offering the best quality range of Geared Pillar Drill Machine. Standard Accessories: Motor Pulley Extra Accessories: Electrical Motor, Keyless Doll Chuck & Arbor V Belts Tapping Control Panel Board Drill Chuck & Arbor Tapping Attachment (Mechanical) Coolant Pump with Coolant Tank Product Details: Minimum Order Quantity : 1 Unit Spindle Hole Taper : MT-3 Model : P25 Brand : Prakash Drill Head Motor : 1.5 HP/960 RPM Column Diameter : 90 mm Distance from Spindle Nose to Base : 950 mm V belt : B-46 Drilling Capacity in MS : 25 mm Drilling Capacity in CI : 32 mm Tapping in MS : 20 mm Spindle Speed : 100-2650 x 8 (rpm x step) Diameter of RAM : 72 mm Feed Type : Fine Feed Maximum Distance Spindle Nose to Table : 560 mm Spindle Center to Column : 206 mm Table Size : 318 x 318 mm Machine Measurement : 500 x 304 x 1600 mm Automation Grade : Automatic Spindle Travel : 160 mm Being a leading firm in this industry, we are offering a high quality range of Fine Feed Bench Drilling Machine. Standard Accessories: Motor Pulley Extra Accessories: Electrical Motor Keyless Doll Chuck & Arbor V Belts Tapping Control Panel Board Drill Chuck & Arbor Tapping Attachment (Mechanical) Coolant Pump with Coolant Tank

  • Filter tags

Other Products

Related Products

AXIOS M16x2 Double Flexible Arm Tapping Machine Model - 16300SD Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M16 x 2mm Pitch Tapping @200 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Pneumatic Tapping Machine, Hydraulic Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 200/300 RPM for Forward and Reverse Horizontal, Vertical or Aligned Tapping Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 2 mm RPM for Max Capacity - : M16 @200 RPM Tapping Size (MS, EN8D, EN19) - : M4-16 mm Tapping Size (SS) - : M4-M12 mm Tapping Chuck Size - : 2 Tapping Direction - : Universal Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots Max Tapping Length - : 100mm
View Details
AXIOS M16 SD Series Flex Arm Tapping Machine

INR150000

AXIOS M48x5 Swing Arm Tapping Machine Model - 48075SQ Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M48 x 5mm Pitch Tapping @50 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Articulated Arm Tapping Machine, Depth Control Tapping Machine, Vertical Tapping Machine, Manual Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 50/75 RPM for Forward and Reverse Tilting Head for Accurate Alignment with Job Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 5 mm RPM for Max Capacity - : M48 @50 RPM Tapping Size (MS, EN8D, EN19) - : M20-40 mm Tapping Size (SS) - : M20-40 mm Tapping Chuck Size - : 4 Tapping Direction - :Vertical Only HMI (Touch Screen) - : Pro-face (Schneider) Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots (EA) Base Size Machined T slot - : 14mm (EA) Table Size - : 850 x 600 x 800 Max Tapping Length - : 100mm
View Details
AXIOS M48 Cap Swing Arm Tapping Machine

INR550000

AXIOS M40x4 Articulated Arm Tapping Machine Model - 40225SQ Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M40 x 4mm Pitch Tapping @150 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 150/225 RPM for Forward and Reverse Tilting Head for Accurate Alignment with Job Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 4 mm RPM for Max Capacity - : M40 @150 RPM Tapping Size (MS, EN8D, EN19) - : M12-40 mm Tapping Size (SS) - : M12-30 mm Tapping Chuck Size - : 3 Tapping Direction - :Vertical Only HMI (Touch Screen) - : Pro-face (Schneider) Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots (EA) Base Size Machined T slot - : 14mm (EA) Table Size - : 850 x 600 x 800 Max Tapping Length - : 100mm
View Details
AXIOS M40 Automatic Arm Tapping Machine

INR450000
