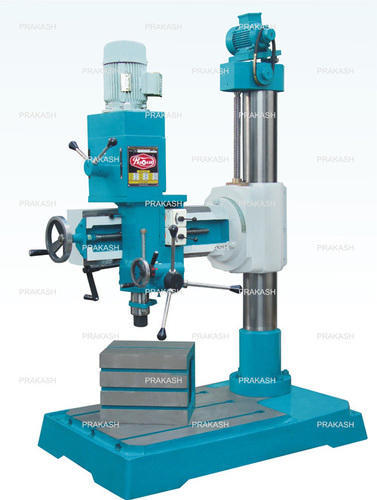

Fine Feed Radial Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.

Product Details:

Minimum Order Quantit : 1 Unit

Lifting Motor : 0.5HP/ 1440 RPM

Tapping in M.S : 20 mm

Model No : R40G

Drilling in MS : 40 mm

Drilling in CI : 45 mm

Spindle Hole Taper : MT-4

Spindle Travel : 250 mm

Spindle Speeds : 70-1225 x 9 (RPM x Step)

Diameter of RAM : 78 mm

Max Min Distance Spindle Nose to Base : 850/250 mm

Max Min Spindle center to Column : 950 / 385 mm

Maximum Drilling Radius : 990 mm

Machine Measurement : 1350 x 850 x 1825 mm

Diameter of Column : 170 mm

Drill Head Motor : 1.5 HP/960 RPM

Lifting Motor V belt : B-23/B-24

Work Table Dimension : 300 x 300 x 385 mm

Automatic Grade : Automatic

Brand : Prakash

We are offering Fine Feed Radial Drilling Machine to our client

Standard Accessories:

Electrical panel board & switches

Electrical motors

Coolant pump with spot assembly in model R40AA

V belts

Extra Accessories:

Drill Chuck & Arbor

Keyless Drill Chuck & Arbor

Work Table

Tapping Attachment (Mechanical)

Drill Vice

Oil Bath Gear Box:

The all-new design of gearbox in a gear box model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Gearbox and hardened gear give a very long life to the machine. Rotation and easy sliding of gears in bearing give very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.

Autofeed Gear Box:

Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box is supported through a good quality bearing and not the bushes. Engaging of Autofeed through Taper Cone Mechanism as in the lathe machines enables maximum loading capacity leaving behind another machine.
