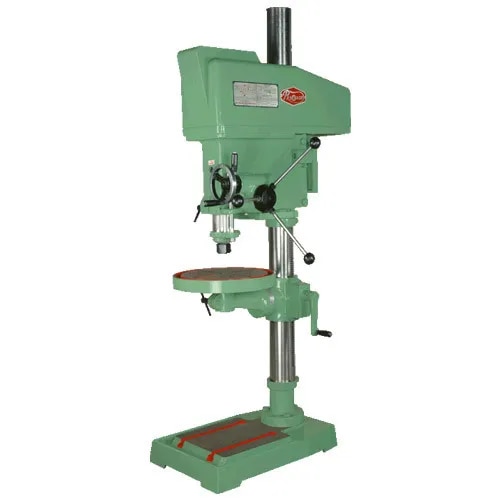

Geared Pillar Drill Machine

Our product range includes a wide range of column pillar drilling machine, fine feed pillar drill machine, automatic fine feed pillar drill machine, pillar drill machine, geared pillar drill machine and auto feed column drilling machine.

Product Details:

Minimum Order Quantity : 1 Unit

Drill Head Motor : 1.5 HP

Drilling Capacity in C.I : 38 mm

Machine Measurement : 690 x 470 x 1778 mm

Spindle Hole Taper : MT-4

Spindle Travel : 160 mm

Spindle Speed : 80-2600 x 8 (rpm x step)

Diameter of RAM : 72 mm

Feed Type : Fine Feed

Maximum Distance Spindle Nose to Table : 670 mm

Spindle Center to Column : 260 mm

Table Size : 355 x 355 mm

Column Diameter : 108 mm

Distance from Spindle Nose to Base : 1120 mm

V belt : B-54

Tapping in MS : 20 mm

Drilling Capacity in M.S : 35 mm

Brand : Prakash

Model : P35

We are successfully meeting the requirements of our clients by offering the best quality range of Geared Pillar Drill Machine.

Standard Accessories:

Motor Pulley

Extra Accessories:

Electrical Motor,

Keyless Doll Chuck & Arbor

V Belts

Tapping Control Panel Board

Drill Chuck & Arbor

Tapping Attachment (Mechanical)

Coolant Pump with Coolant Tank
