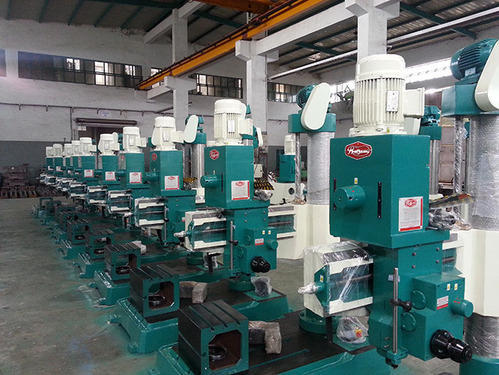

Geared Drilling Machine

We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.

Product Details:

Minimum Order Quantity : 1 Unit

Table Size : 800 X 240 mm

Drilling Head Motor : 1.5 HP / 960 RPM

Max. Drilling Capacity : 40mm

Lifting Motor : 1 HP/1440 RPM

Lifting Motor V belt : B-23 / B-24

Model no : R40AA

Drilling in MS : 40 mm

Spindle Travel : 250 mm

Spindle Speed : 70-1225 X 9 (RPM x Step)

Tapping in MS : 25 mm

Spindle Hole taper : MT-4

Drilling in CI : 45 mm

Rough Boring in MS : 75 mm

Spindle Autofeed Ranges : 0.05 & 0.09 (mm/rev.)

Max Min Distance Spindle Nose to Base : 950 / 250 mm

Max Min Distance Spindle Center to Column : 930 / 400 mm

Maximum Drilling Radius : 1020 mm

Machine Measurement : 1510 X 850 X 2100 mm

Diameter of Column : 180 mm

Work Table Dimension : 300 X 300 X 385 mm

Coolant Tank Inbuilt In Base : 440 X 430 X 140 mm 26 Litres

Brand : Prakash

Automatic Grade : Automatic

Oil bath Gear Box

The all new design of gear box in model PMW R40AA,R40G and P40AA is having 9 speed with all 9 gears made up of hardened NiCr steel up to HRC 50 55. Oil bath gear box and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings gives very high reliability. Gear are internally six splined and shaft are externally splined

All the gears in gearbox are machined on imported WMW Germany make gear shaper.

All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.

Autofeed Gear Box

Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging Of Autofeed through

Taper Cone Mechanism

As in the lathe machines enables maximum loading capacity leaving behind other machines

Features:

9 Spindle speeds with single speed motor

Hardened Gears

Hardened & Ground Spindle, RAM, Pinion

Single Piece Arm

Taper Wedge

Longer Gun Metal Nut for Lifting of Arm

Extra Accessories:

Drill Chuck & Arbor

Keyless Dill Chuck & Arbor

Work Table

Extra Long Column

Tapping Attachment (Mechanical)

Drill Vice

Standard Accessories:

Electrical Panel Board & Switches

Electrical Motors

Coolant pump with Spout Assembly in Model R40AA
