Home Products geared drilling machine

Our Products

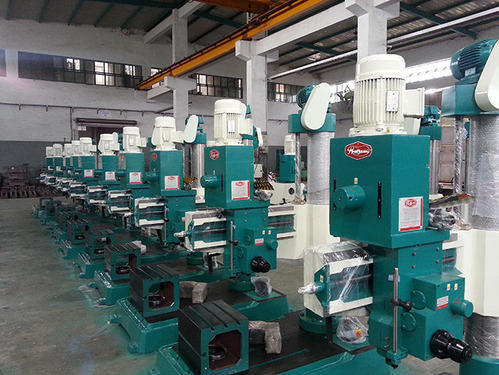

geared drilling machine
We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.Product Details:Minimum Order Quantity : 1 UnitTable Size : 800 X 240 mmDrilling Head Motor : 1.5 HP / 960 RPMMax. Drilling Capacity : 40mmLifting Motor : 1 HP/1440 RPMLifting Motor V belt : B-23 / B-24Model no : R40AADrilling in MS : 40 mmSpindle Travel : 250 mmSpindle Speed : 70-1225 X 9 (RPM x Step)Tapping in MS : 25 mmSpindle Hole taper : MT-4Drilling in CI : 45 mmRough Boring in MS : 75 mmSpindle Autofeed Ranges : 0.05 & 0.09 (mm/rev.)Max Min Distance Spindle Nose to Base : 950 / 250 mmMax Min Distance Spindle Center to Column : 930 / 400 mmMaximum Drilling Radius : 1020 mmMachine Measurement : 1510 X 850 X 2100 mmDiameter of Column : 180 mmWork Table Dimension : 300 X 300 X 385 mmCoolant Tank Inbuilt In Base : 440 X 430 X 140 mm 26 LitresBrand : PrakashAutomatic Grade : AutomaticOil bath Gear BoxThe all new design of gear box in model PMW R40AA,R40G and P40AA is having 9 speed with all 9 gears made up of hardened NiCr steel up to HRC 50 55. Oil bath gear box and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings gives very high reliability. Gear are internally six splined and shaft are externally splinedAll the gears in gearbox are machined on imported WMW Germany make gear shaper.All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.Autofeed Gear Box Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging Of Autofeed through Taper Cone MechanismAs in the lathe machines enables maximum loading capacity leaving behind other machinesFeatures:9 Spindle speeds with single speed motorHardened GearsHardened & Ground Spindle, RAM, PinionSingle Piece ArmTaper WedgeLonger Gun Metal Nut for Lifting of ArmExtra Accessories:Drill Chuck & ArborKeyless Dill Chuck & ArborWork TableExtra Long ColumnTapping Attachment (Mechanical)Drill ViceStandard Accessories:Electrical Panel Board & SwitchesElectrical MotorsCoolant pump with Spout Assembly in Model R40AA
Geared Drilling Machine

INR 275000

VIEW DETAILS

Filter using tags

CNC Automatic Drilling MachineDrill Tap End Mill Resharpening MachineAutomatic Fine Feed Pillar Drill MachineAuto Feed Radial Drilling MachineFine Feed Pillar Drill MachinePillar Drill MachineGeared Pillar Drill MachineFine Feed Pillar Drilling MachineColumn Pillar Drilling MachineAuto Feed Column Drilling MachineHeavy Duty Geared Radial Drilling MachineDouble Column Radial Drilling MachineBelt Drive Radial Arm Drill MachineStandard Radial Drilling MachineFine Feed Radial Drilling MachineGeared Radial Drilling MachineBack Geared Radial Drilling MachineGeared Drilling MachineDrill Tap End Mill Cutter GrinderDrill Point GrinderTapping MachineTapping MachinesFlexible Arm Tapping MachineFlex Arm Tapping MachineElectric Tapping Machine,Pitch Control Tapping MachineAutomatic Servo Arm Tapping MachineSwing Arm Tapping MachineArticulated Arm Tapping MachineDepth Control Tapping MachinePneumatic Tapping MachineHydraulic Tapping Machine
We are a leading Manufacturer of auto feed radial drilling machine, heavy duty geared radial drilling machine, geared radial drilling machine, double column radial drilling machine, geared drilling machine and fine feed radial drilling machine from Rajkot, India.Product Details:Minimum Order Quantity : 1 UnitTable Size : 800 X 240 mmDrilling Head Motor : 1.5 HP / 960 RPMMax. Drilling Capacity : 40mmLifting Motor : 1 HP/1440 RPMLifting Motor V belt : B-23 / B-24Model no : R40AADrilling in MS : 40 mmSpindle Travel : 250 mmSpindle Speed : 70-1225 X 9 (RPM x Step)Tapping in MS : 25 mmSpindle Hole taper : MT-4Drilling in CI : 45 mmRough Boring in MS : 75 mmSpindle Autofeed Ranges : 0.05 & 0.09 (mm/rev.)Max Min Distance Spindle Nose to Base : 950 / 250 mmMax Min Distance Spindle Center to Column : 930 / 400 mmMaximum Drilling Radius : 1020 mmMachine Measurement : 1510 X 850 X 2100 mmDiameter of Column : 180 mmWork Table Dimension : 300 X 300 X 385 mmCoolant Tank Inbuilt In Base : 440 X 430 X 140 mm 26 LitresBrand : PrakashAutomatic Grade : AutomaticOil bath Gear BoxThe all new design of gear box in model PMW R40AA,R40G and P40AA is having 9 speed with all 9 gears made up of hardened NiCr steel up to HRC 50 55. Oil bath gear box and hardened gears give very long life to the machine. Rotation and easy sliding of gears in bearings gives very high reliability. Gear are internally six splined and shaft are externally splinedAll the gears in gearbox are machined on imported WMW Germany make gear shaper.All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.Autofeed Gear Box Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gears made up of NiCr Steel with heavy 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shafts in the Gear Box are supported through good quality bearings and not the Bushes. Engaging Of Autofeed through Taper Cone MechanismAs in the lathe machines enables maximum loading capacity leaving behind other machinesFeatures:9 Spindle speeds with single speed motorHardened GearsHardened & Ground Spindle, RAM, PinionSingle Piece ArmTaper WedgeLonger Gun Metal Nut for Lifting of ArmExtra Accessories:Drill Chuck & ArborKeyless Dill Chuck & ArborWork TableExtra Long ColumnTapping Attachment (Mechanical)Drill ViceStandard Accessories:Electrical Panel Board & SwitchesElectrical MotorsCoolant pump with Spout Assembly in Model R40AA
View Details
Geared Drilling Machine

INR 275000
