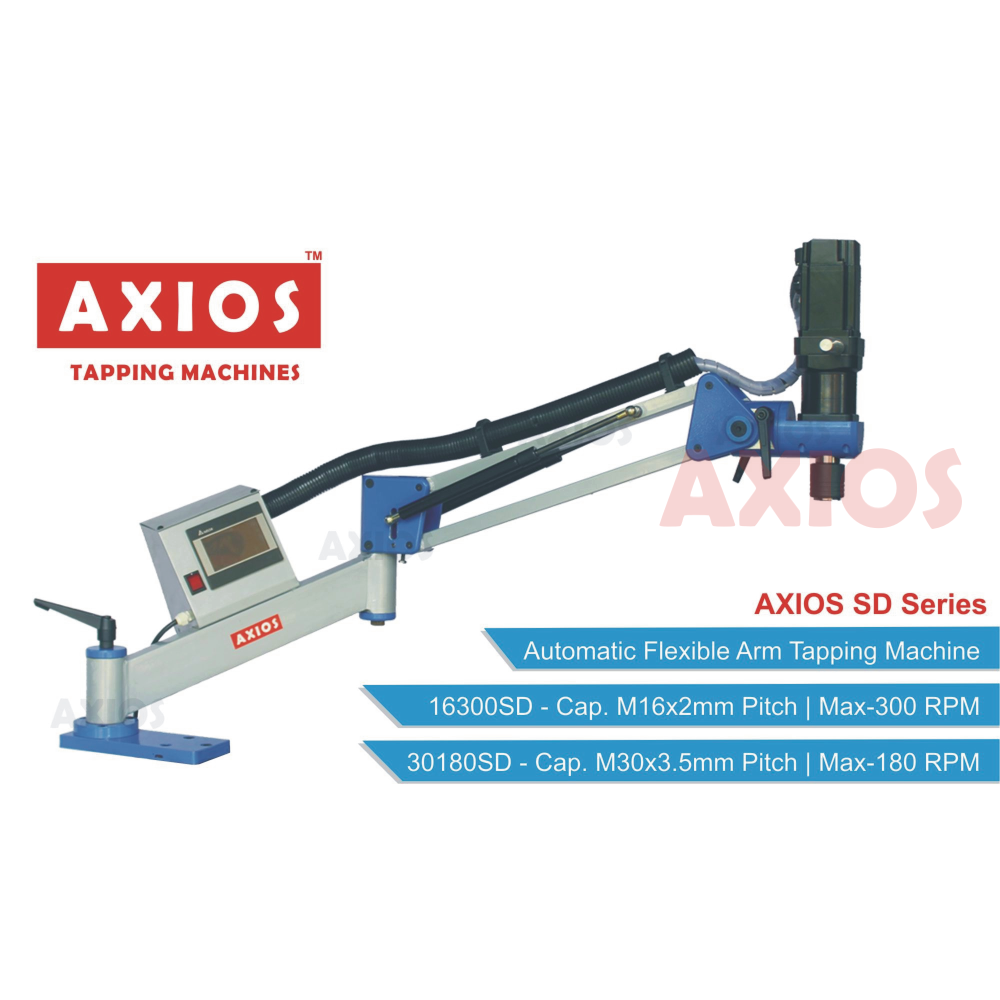

AXIOS M16 SD Series Flex Arm Tapping Machine

AXIOS M16x2 Double Flexible Arm Tapping Machine

Model - 16300SD

Unique Features:

All Hinges Bearing Supported

Sturdy Designed Cast Iron Structure for arms

M16 x 2mm Pitch Tapping @200 RPM

PECK Tapping Cycle included

Auto Depth Controlled

Usage/Application : All type of Tapping and Threading

Cycle Time : in seconds

Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Pneumatic Tapping Machine, Hydraulic Tapping Machine

3 Phase Mitsubishi Japan Brand Electric System

High Speed 200/300 RPM for Forward and Reverse

Horizontal, Vertical or Aligned Tapping

Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base

No. of Arms - : 2

Tap Pitch – : Max - 2 mm

RPM for Max Capacity - : M16 @200 RPM

Tapping Size (MS, EN8D, EN19) - : M4-16 mm

Tapping Size (SS) - : M4-M12 mm

Tapping Chuck Size - : 2

Tapping Direction - : Universal

Hinge Bearing Support - : INA

(EA) Working Base - : Ground & Machined T Slots

Max Tapping Length - : 100mm
