AXIOS M48 Cap Swing Arm Tapping Machine

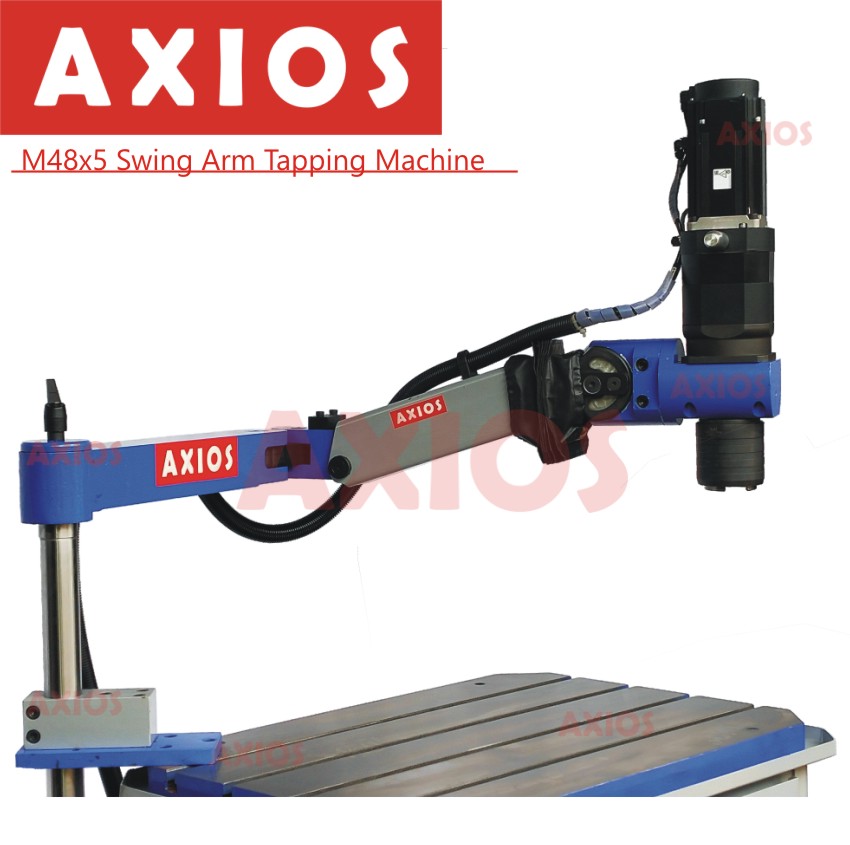

AXIOS M48x5 Swing Arm Tapping Machine

Model - 48075SQ

Unique Features:

All Hinges Bearing Supported

Sturdy Designed Cast Iron Structure for arms

M48 x 5mm Pitch Tapping @50 RPM

PECK Tapping Cycle included

Auto Depth Controlled

Usage/Application : All type of Tapping and Threading

Cycle Time : in seconds

Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Articulated Arm Tapping Machine, Depth Control Tapping Machine, Vertical Tapping Machine, Manual Tapping Machine

3 Phase Mitsubishi Japan Brand Electric System

High Speed 50/75 RPM for Forward and Reverse

Tilting Head for Accurate Alignment with Job

Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature

Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base

No. of Arms - : 2

Tap Pitch – : Max - 5 mm

RPM for Max Capacity - : M48 @50 RPM

Tapping Size (MS, EN8D, EN19) - : M20-40 mm

Tapping Size (SS) - : M20-40 mm

Tapping Chuck Size - : 4

Tapping Direction - :Vertical Only

HMI (Touch Screen) - : Pro-face (Schneider)

Hinge Bearing Support - : INA

(EA) Working Base - : Ground & Machined T Slots

(EA) Base Size Machined T slot - : 14mm

(EA) Table Size - : 850 x 600 x 800

Max Tapping Length - : 100mm
