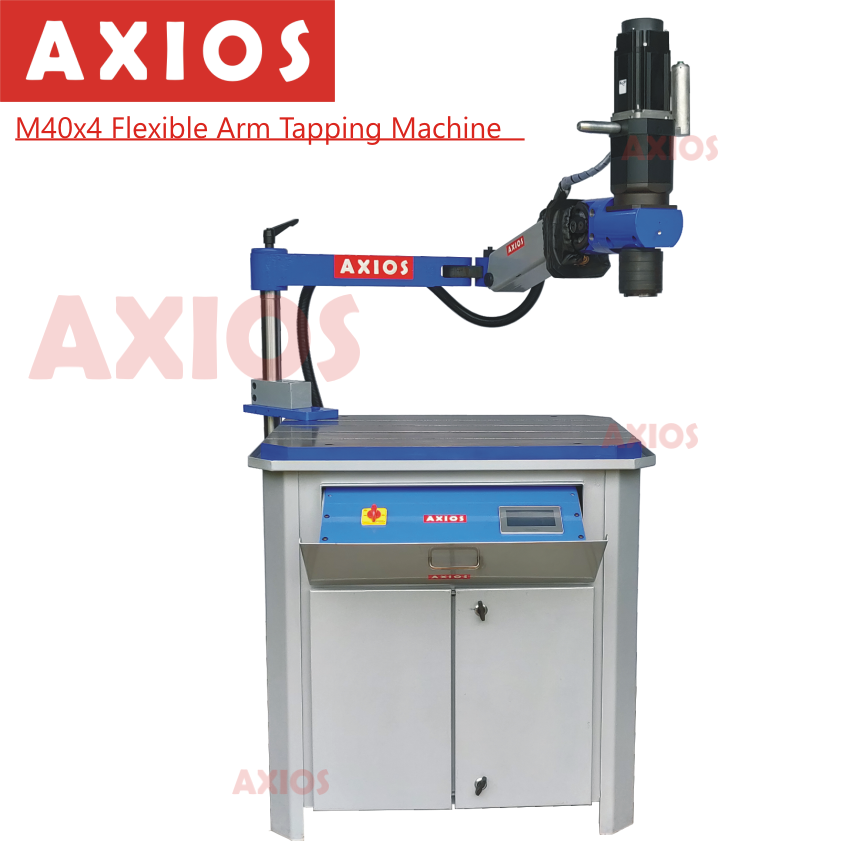

Name: AXIOS M40 Automatic Arm Tapping Machine
Brand: AXIOS
Price: 450000 INR
Availability: OutOfStock

Phone Number

Email Address kalpesh@prakashmachines.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Almighty Gate, Metoda, Metoda

Rajkot, India, 360021

Description

AXIOS M40x4 Articulated Arm Tapping Machine Model - 40225SQ Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M40 x 4mm Pitch Tapping @150 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 150/225 RPM for Forward and Reverse Tilting Head for Accurate Alignment with Job Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 4 mm RPM for Max Capacity - : M40 @150 RPM Tapping Size (MS, EN8D, EN19) - : M12-40 mm Tapping Size (SS) - : M12-30 mm Tapping Chuck Size - : 3 Tapping Direction - :Vertical Only HMI (Touch Screen) - : Pro-face (Schneider) Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots (EA) Base Size Machined T slot - : 14mm (EA) Table Size - : 850 x 600 x 800 Max Tapping Length - : 100mm

Specifications

Tapping Cap	M40 x 4 mm Pitch
Working Radius	1100 mm
RPM (FWD / REV)	150 / 225
Servo Motor Power	2000 W / 3 Phase
Table Size	850 x 600 x 800
Servo Motor, Drive & PLC	Mitsubishi Brand High Speed & High Torque
Program Cycle	Manual/Auto/Peck
