Home Products Pitch Control Arm Tapping Machine M16
M16 Pitch Control Ar
M16 Pitch Control Ar
Tapping Machines by AXIOS

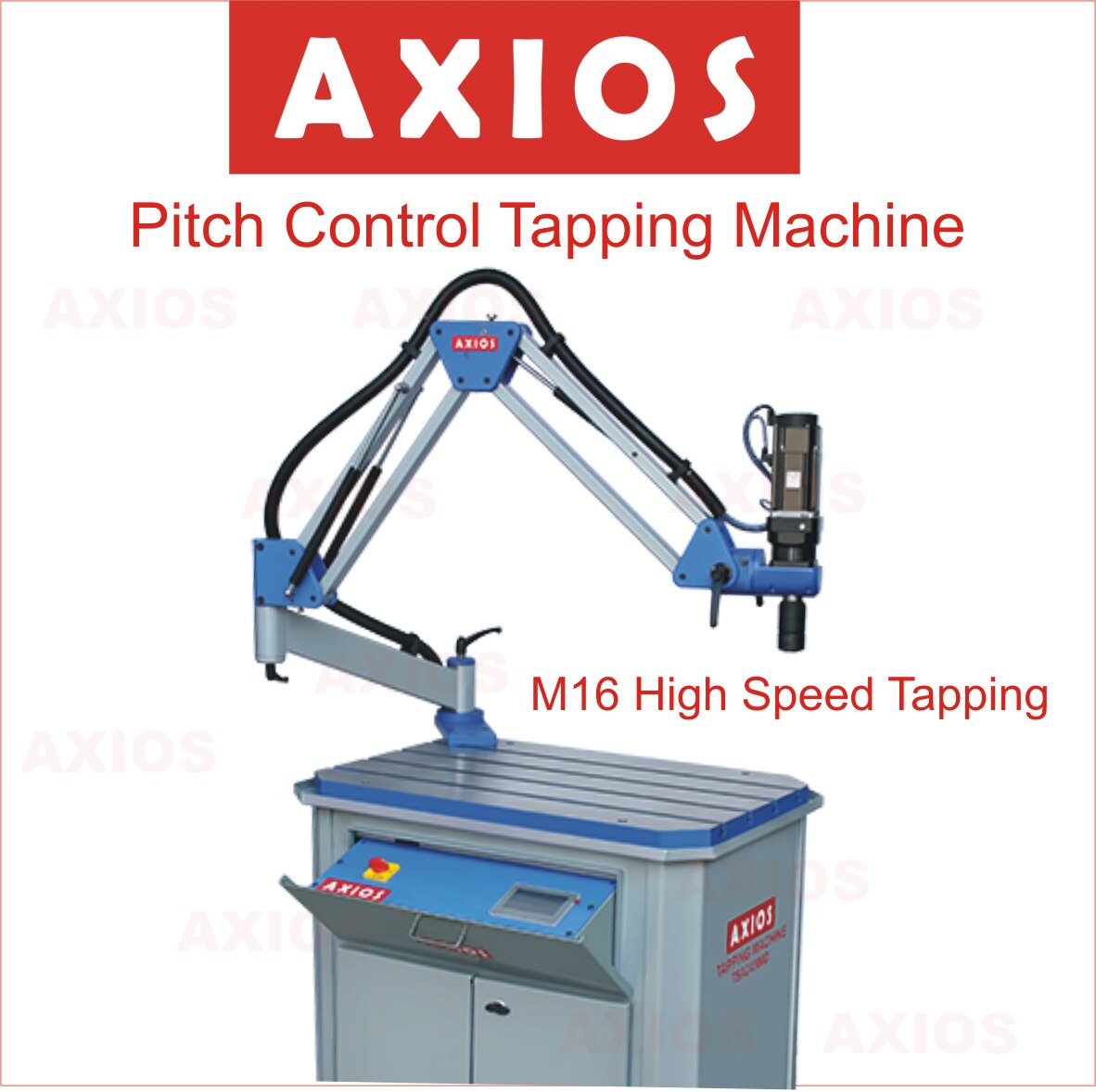

Pitch Control Arm Tapping Machine M16 - AXIOS Make

INR 225000
Share with
Share this on :

Description

Product details

Model : 16450TR M16 Pitch Control Arm Tapping Machine Machine Controlled by MITSUBISHI controller M16 Tapping High Speed of 300 RPM Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine 3 Phase Mitsubishi Electric System High Speed 450/450 RPM Auto Depth Control 360 degree Universal Head Casting Base with T-Slots Bearing Supported Hinges Quick Change Tapping Adapters

Other Specifications

Tapping Size :M16 - Metric
Tapping Radius :1700 mm
Controller :Mitsubishi Japan

Keywords

  • Filter tags

Other Products

Related Products

AXIOS M16x2 Double Flexible Arm Tapping Machine Model - 16300SD Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M16 x 2mm Pitch Tapping @200 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Pneumatic Tapping Machine, Hydraulic Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 200/300 RPM for Forward and Reverse Horizontal, Vertical or Aligned Tapping Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 2 mm RPM for Max Capacity - : M16 @200 RPM Tapping Size (MS, EN8D, EN19) - : M4-16 mm Tapping Size (SS) - : M4-M12 mm Tapping Chuck Size - : 2 Tapping Direction - : Universal Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots Max Tapping Length - : 100mm
View Details
AXIOS M16 SD Series Flex Arm Tapping Machine

INR150000

AXIOS M48x5 Swing Arm Tapping Machine Model - 48075SQ Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M48 x 5mm Pitch Tapping @50 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine, Articulated Arm Tapping Machine, Depth Control Tapping Machine, Vertical Tapping Machine, Manual Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 50/75 RPM for Forward and Reverse Tilting Head for Accurate Alignment with Job Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 5 mm RPM for Max Capacity - : M48 @50 RPM Tapping Size (MS, EN8D, EN19) - : M20-40 mm Tapping Size (SS) - : M20-40 mm Tapping Chuck Size - : 4 Tapping Direction - :Vertical Only HMI (Touch Screen) - : Pro-face (Schneider) Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots (EA) Base Size Machined T slot - : 14mm (EA) Table Size - : 850 x 600 x 800 Max Tapping Length - : 100mm
View Details
AXIOS M48 Cap Swing Arm Tapping Machine

INR550000

AXIOS M40x4 Articulated Arm Tapping Machine Model - 40225SQ Unique Features: All Hinges Bearing Supported Sturdy Designed Cast Iron Structure for arms M40 x 4mm Pitch Tapping @150 RPM PECK Tapping Cycle included Auto Depth Controlled Usage/Application : All type of Tapping and Threading Cycle Time : in seconds Arm Tapping Machine, Tapping Machine, Pitch Control Tapping machine, Automatic Tapping Machine, Electric Tapping Machine, Servo Tapping Machine, Swing Arm Tapping Machine 3 Phase Mitsubishi Japan Brand Electric System High Speed 150/225 RPM for Forward and Reverse Tilting Head for Accurate Alignment with Job Cast Iron Base with Machined T-Slots and Accurately Ground Surface as added feature Portable - Machine can be taken anywhere on the shop floor and fixed to any strong base No. of Arms - : 2 Tap Pitch – : Max - 4 mm RPM for Max Capacity - : M40 @150 RPM Tapping Size (MS, EN8D, EN19) - : M12-40 mm Tapping Size (SS) - : M12-30 mm Tapping Chuck Size - : 3 Tapping Direction - :Vertical Only HMI (Touch Screen) - : Pro-face (Schneider) Hinge Bearing Support - : INA (EA) Working Base - : Ground & Machined T Slots (EA) Base Size Machined T slot - : 14mm (EA) Table Size - : 850 x 600 x 800 Max Tapping Length - : 100mm
View Details
AXIOS M40 Automatic Arm Tapping Machine

INR450000
